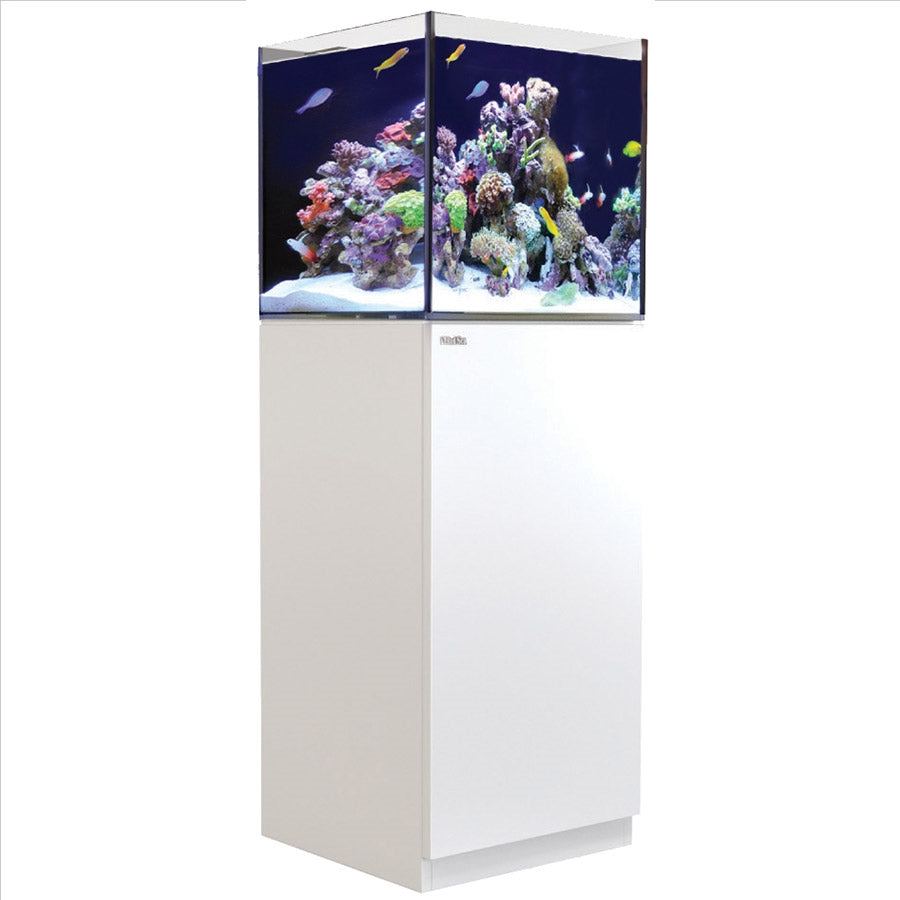

Red Sea REEFER Aquarium System Nano - White

If we do not have one in stock, we are happy to order one in specially for you.

Red Sea REEFER Aquarium System - The REEFER series combines a contemporary, rimless, ultra-clear glass aquarium with a stylish cabinet and a comprehensive water management system, including a professional sump with integrated automatic top-up

Rimless Reef Ready Systems for advanced hobbyists with a sleek design

The REEFER Concept

Red Sea’s REEFER series of Reef Systems, provide advanced hobbyists with a solid foundation for building a fully featured reef or marine aquarium.

The REEFER series combines a contemporary, rimless, ultra-clear glass aquarium with a stylish cabinet and a comprehensive water management system, including a professional sump with integrated automatic top-up, and Red Sea’s unique silent down-flow system.

  • Incorporating technologies originally developed for Red Sea’s all-in-one MAX coral reef systems, the REEFER series is designed for ease of operation while enabling the advanced hobbyist to install an unlimited choice of lighting, filtration, circulation and controllers to create a uniquely customised system.

  • The Reefer gives a customised marine tank based on the essentials of a quality build incorporating superior clear glass, professional sump system topped off with a stylish cabinet.

    Red Sea REEFER Aquarium Tank

    Complete with:
  • Rimless, ultra-clear, bevelled edge glass aquarium
  • Elegant marine-spec cabinet
  • Professional sump with constant height skimmer chamber and micron filter bags
  • Silent, regulated down-flow system with emergency overflow
  • Integrated automatic top-up system with reservoir
  • Assembly-ready piping – no gluing required

  • REEFER Specification:
  • REEFER aquariums are constructed from thick, bevelled-edge, ultra-clear glass to support their elegant and modern rimless design.

  • The aquarium sits on a recessed base that “floats” it above the cabinet, which seamlessly follows the contour of the glass.

    The marine-spec laminated cabinet that houses the sump, (and in the larger models also includes a dedicated, vented space for chillers) is smartly finished with weatherproof, epoxy-painted doors.

    REEFER Water Management System

    Removable surface-skimming combs surround the top of the centrally located overflow box that houses the downpipe, sump return pipe and the discreet multi-directional “eyeball” return outlet nozzle.

    In the event of a blockage in the regulated downpipe, an additional emergency overflow pipe provides an unrestricted free flow of aquarium water directly to the sump.

    On entering the sump the water passes through a 200 micron mechanical filter bag, before entering the filtration compartment that maintains a constant water height, making it suitable for all skimmers and other reactors.

    In order to remove any air bubbles that may have escaped from the skimmer, the water passes through a bubble-stripping cascade on its way to the return pump chamber.

    To ensure a constant water level in the pump compartment, all REEFER sumps include an integrated automatic freshwater top-up unit, guaranteeing a constant, stable water flow throughout the complete system.
    Supplied as a complete self-assembly kit, all pipe work is ready without the need for any gluing.

    • Code of distributor: RED501
    • Warranty:
    • Dimensions: 45 x 45 x 45 cm
    • Capacity: 77L
    • Glass thickness:
    • Rim/rimless: Rimless
    • Stand included: Yes
    • Accessories:

    REEFER Series Technical Data


    REEFER™ Model
    Specification NANO 170
    Main Features Ultra clear front and side glass
    Ultra clear front glass thickness (mm) 8 (3/10”) 10 (3/8”)
    Built in surface skimmer

    Integrated automatic top up system

    System Volumes Display tank water volume (L) 77 (21 gal) 130 (34 gal)
    In cabinet sump water volume (L) 28 (7 gal) 35 (9 gal)
    Total system water volume (L) 105 (28 gal) 165 (43 gal)
    RO reservoir volume (L) 4.5 (1.2 gal) 5.4 (1.5 gal)
    System Dimensions Display tank length (cm) 45 (18″) 60 (24.5″)
    Display tank height (cm) 45 (18″) 50 (20″)
    Display tank width (cm) 45 (18″) 50 (20″)
    Total system height with cabinet (cm) 132 (52″) 137 (54″)
    Sump Dimensions Water height (cm) 20 (8”) 20 (8”)
    Skimmer chamber (cm) 24 x 21 (9.4”x8.3”) 30 x 25 (11.8”x9.8”)
    Pump chamber (cm) 24 x 12 (9.4”x4.7”) 30 x 12 (11.8”x4.7”)
    Return Pump 3/4” threaded hose barb – Pipe Int. Dia 16mm (5/8”) 16mm (5/8”)
    Recommended flow (lph)
    (pump not included)
    (530 gph)
    (530 gph)
