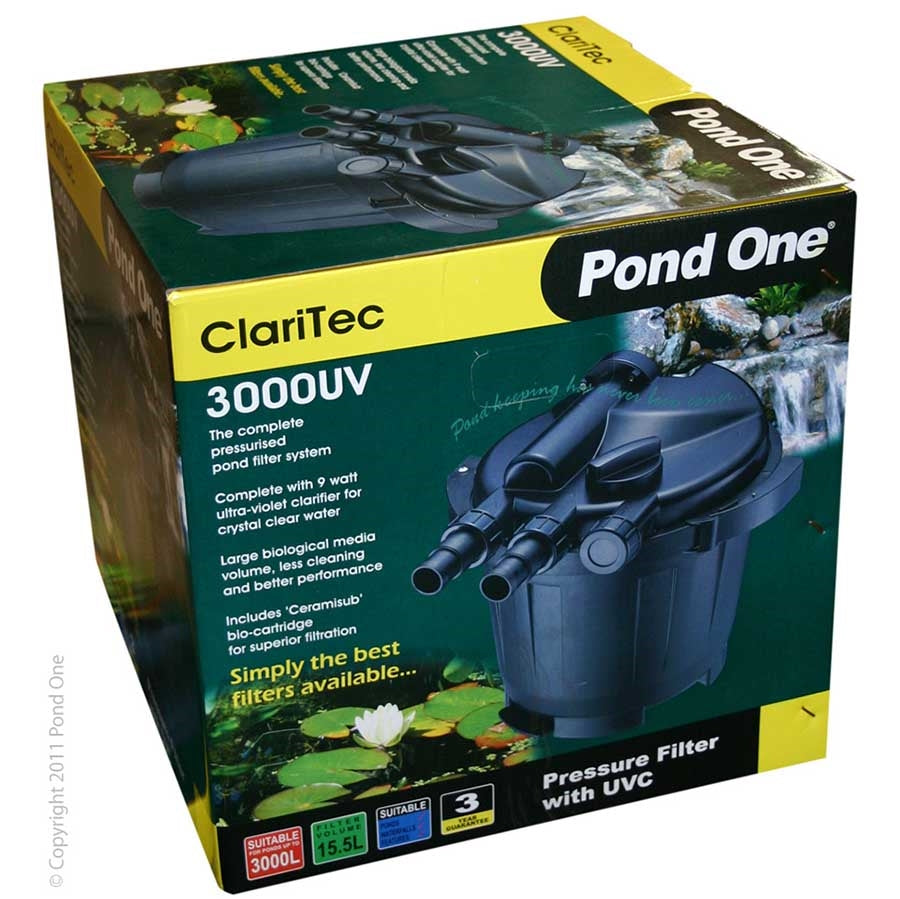

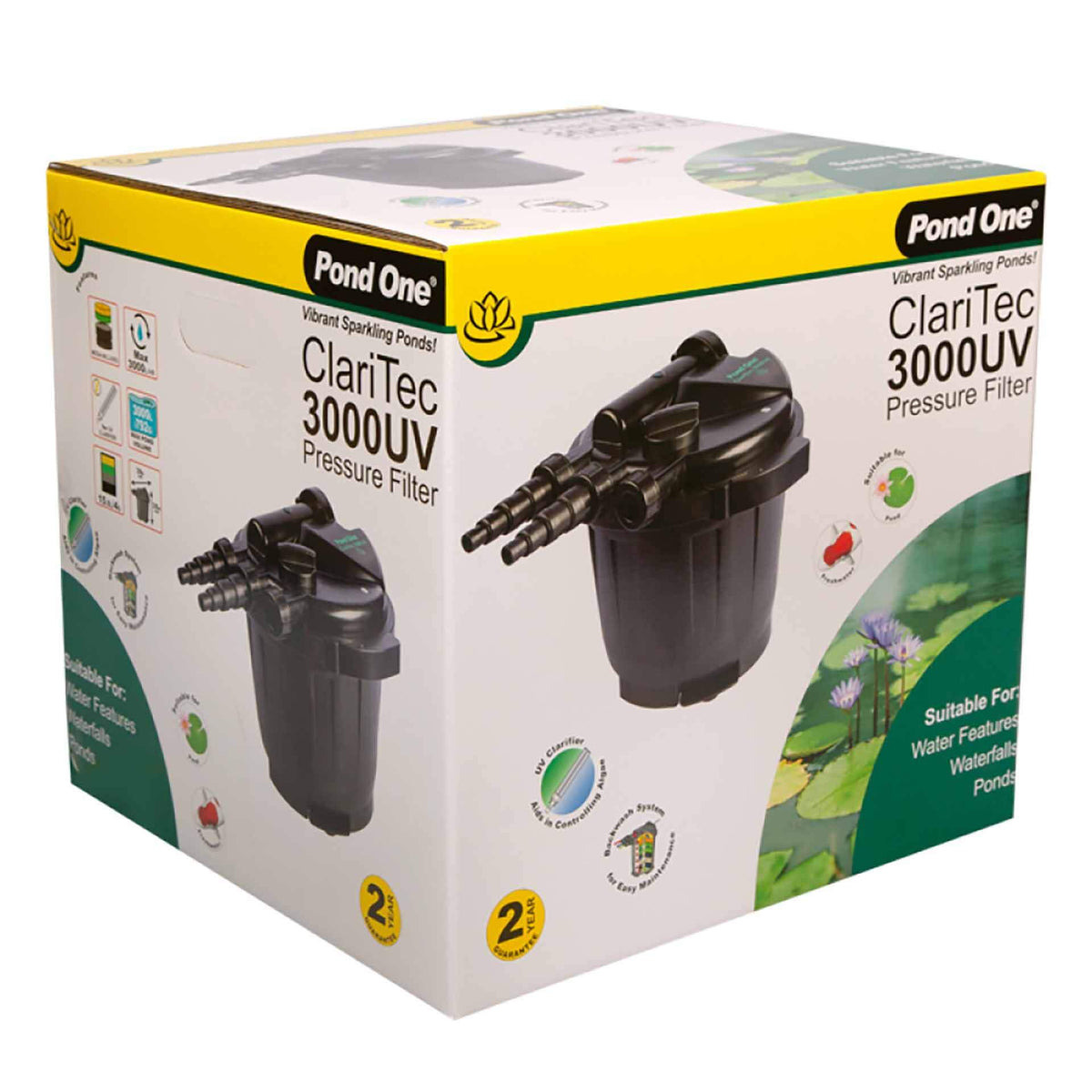

Pond One Claritec 3000UV Pressurised Filter with 9w UVC

$279.00

Description:

Description:

Pond One Claritec 3000 Pressurised Filter is designed for a water pump to push water through it for filtration.

Claritec 3000 Pressurised Filter

ClariTec Pressurised Filter

Features & Benefits

Solid construction

Deep cleaning power

Greater filter volume

Includes filter media

Supplied with all hose connectors

2 + 1 Year Guarantee

ClariTec 3000

Max Flow Rate: 3000L/Hr

Fitting in/out: 3/4" 1.5", 19-37mm

Capacity: 15.5 litres

Filter Height: 35

Filter Diameter: 39cm

Recommended Pond Size

Ornamental pond with plants and few fish and less than average exposure to sun - no more than 6 hours a day full sunlight exposure : 3000L

Typical pond with plants and average fish contents and average sun exposure : 1500L

Heavily stocked pond with plants and larger fish or greater than average sun exposure : 750L

*When choosing the appropriate pump size the following needs to be taken into consideration: hose length to filter, hose height to filter, hose diameter used, bends and angles in the hose to filter.

All of these factors affect the end flow rate of the pump. As a guide, use the following calculations and match them to the head height values to cross reference end flow of the pump in l/ph.

Head height refers to the height the pump must push water vertically to the filter however, other factors listed below also add to the ultimate head height values.

For every 1m of pipe is equivalent to 10cm of head height.

For every 1 size hose diameter reduced from the maximum outlet diameter of the pump is equivalent to 1m of head height.

For every 90 degree bend in the hose is equivalent to 1m head height.

For every 45 degree bend in the house is equivalent to 50cm of head height.

Pond One Claritec 3000UV Pressurised Filter with 9w UVC
