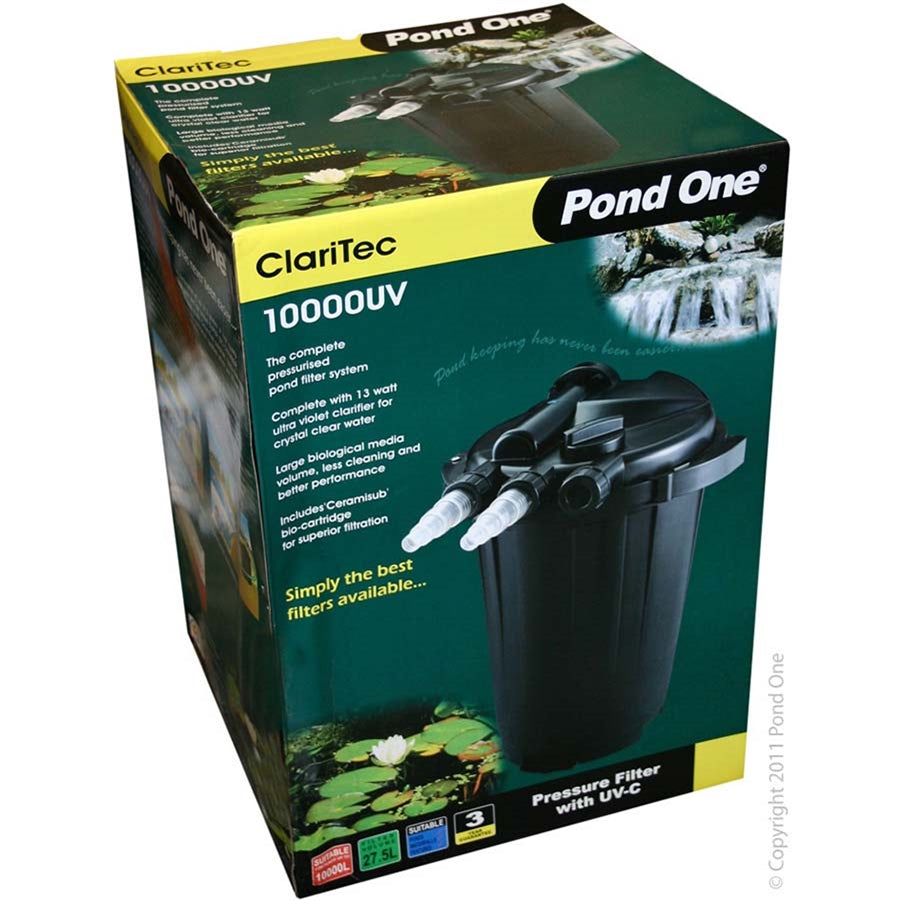

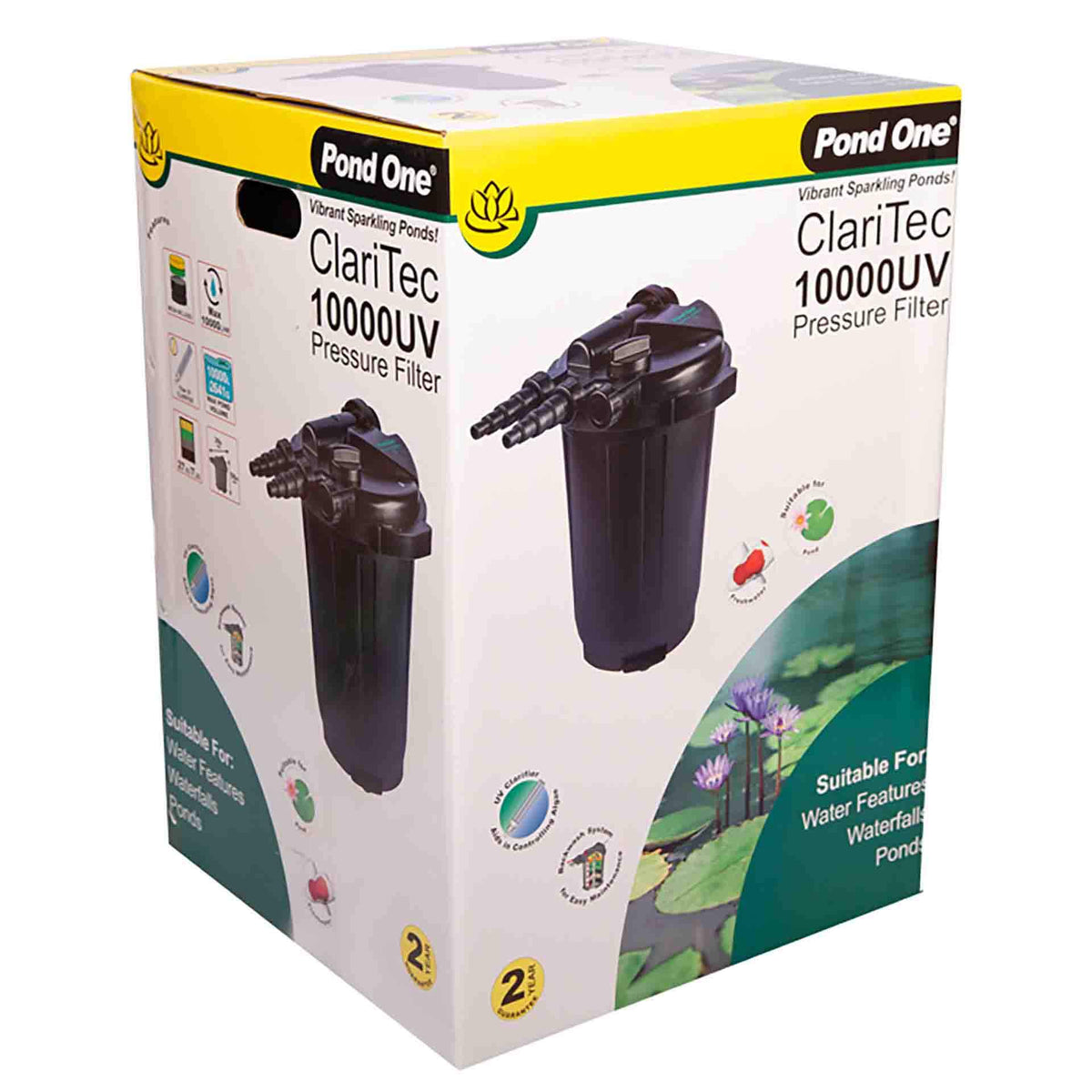

Pond One Claritec 10,000UV Pressurised Filter with 13w UVC

1 item left

Pond One Claritec 10,000UV Pressurised Filter with 13w UVC

Pond One Claritec 10,000 Pressurised Filter is designed for a water pump to push water through it for filtration.

Claritec 10,000 Pressurised Filter

ClariTec Pressurised Filter

Features & Benefits:

  • Solid construction
  • Deep cleaning power
  • Greater filter volume
  • Includes filter media
  • Supplied with all hose connectors
  • 2 + 1 Year Guarantee


  • ClariTec 10,000
  • Max Flow Rate: 10000L/Hr
  • Fitting in/out: 3/4" 1.5", 19-37mm
  • Capacity: 27.5 litres
  • Filter Height: 56
  • Filter Diameter: 39cm

  • Recommended Pond Size
  • Ornamental pond with plants and few fish and less than average exposure to sun - no more than 6 hours a day full sunlight exposure : 10,000L
  • Typical pond with plants and average fish contents and average sun exposure : 5000L
  • Heavily stocked pond with plants and larger fish or greater than average sun exposure : 2500L
  • *When choosing the appropriate pump size the following needs to be taken into consideration: hose length to filter, hose height to filter, hose diameter used, bends and angles in the hose to filter.
  •

    All of these factors affect the end flow rate of the pump. As a guide, use the following calculations and match them to the head height values to cross reference end flow of the pump in l/ph.

    Head height refers to the height the pump must push water vertically to the filter however, other factors listed below also add to the ultimate head height values.

  • For every 1m of pipe is equivalent to 10cm of head height.
  • For every 1 size hose diameter reduced from the maximum outlet diameter of the pump is equivalent to 1m of head height.
  • For every 90 degree bend in the hose is equivalent to 1m head height.
  • For every 45 degree bend in the house is equivalent to 50cm of head height.
