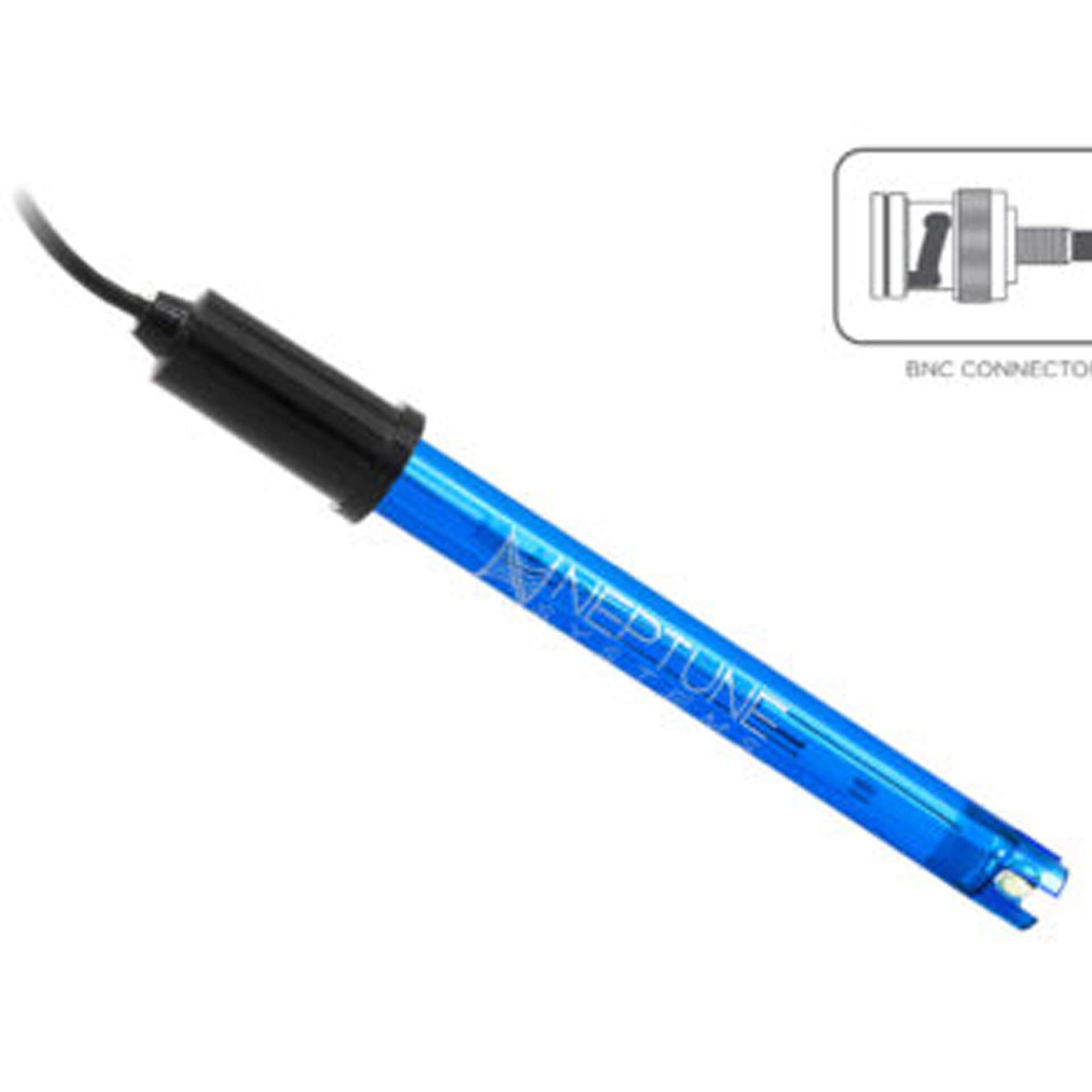

Neptune Systems Double Junction pH Probe

The Neptune Systems Double Junction pH Probe is the standard and recommended pH probe for use with Apex aquarium controllers. It's considered a "lab-grade" probe, designed for enhanced durability, accuracy, and a longer lifespan compared to simpler, single-junction pH probes.

Here's a breakdown of its key features and why the "double junction" design is important:

Key Features and Functions:

Continuous pH Monitoring:

The probe constantly measures the hydrogen ion concentration in your aquarium water, providing a real-time pH reading.
pH is a critical parameter in both freshwater and especially saltwater aquariums, directly impacting the health of livestock, coral calcification, and the overall stability of the biological system.
Double Junction Design (The Main Advantage):

Standard (Single Junction) Probes: In a single-junction probe, the internal reference electrode is separated from the aquarium water by just one porous junction. Over time, aquarium water (especially saltwater with its high ion content) can diffuse into the probe's internal electrolyte, and the internal electrolyte can leak out. This can contaminate the reference solution and foul the junction, leading to drift, inaccurate readings, and a shorter probe lifespan. Organic compounds and proteins in aquarium water are particularly notorious for clogging single junctions.

Double Junction Probes: These probes introduce a second "vessel" or chamber inside the probe. The internal reference electrode is in contact with one electrolyte solution, which is then separated from the outer, second electrolyte solution by a junction. The outer electrolyte then contacts the aquarium water via a second junction.

Benefits of Double Junction:
Increased Resistance to Contamination: The second junction acts as a barrier, significantly slowing down the contamination of the primary reference electrolyte by undesirable ions (like sulfides, proteins, heavy metals) from the aquarium water. This prevents clogging and poisoning of the reference electrode.
Extended Lifespan: By protecting the internal components, double junction probes typically last much longer than single-junction probes (often 18 months to 3 years or more with proper care, compared to 6-12 months for single-junction).
Improved Stability and Accuracy: The reduced contamination helps the probe maintain its calibration and provide more stable and accurate readings over time, reducing the frequency of calibration.

Lab-Grade Quality:

Neptune Systems designates this as a "lab-grade" probe, indicating it meets higher standards for precision and reliability suitable for demanding aquarium environments.
Integration with Apex System via PM1 Module (or directly on some Apex 3 units):

The Neptune Systems Double Junction pH Probe typically connects to a PM1 pH/ORP Module via a BNC connector. The PM1 module provides the necessary port for the pH probe, as well as an ORP probe port, a temperature probe port (for temperature compensation), and an I/O port.
For newer Apex A3 models (like the A3 Apex and A3 Pro), a dedicated pH probe port (BNC) is often included directly on the main controller unit or Energy Bar 832, allowing direct connection without needing a separate PM1 module for the first pH probe. If you want to monitor pH in multiple tanks or locations (e.g., display tank and calcium reactor effluent), you would then add a PM1 module for the additional probes.
Real-time Data, Logging, and Graphing:

The live pH reading is constantly displayed on your Apex Fusion dashboard.
All pH data is logged over time, allowing you to view historical trends and graphs. This is invaluable for identifying daily pH swings, long-term drift, or sudden drops/spikes that could indicate an issue with your buffering, calcium reactor, or CO2 levels.
Automated Alerts and Control:

Alerts: You can set up custom alerts (email, SMS, push notifications) to warn you if your pH goes outside of your desired safe range (e.g., "pH below 8.0" or "pH above 8.4").
Automation:The Apex's robust programming allows for intelligent control based on pH:
Calcium Reactor Control: The most common automation. The Apex can turn a CO2 solenoid ON or OFF to maintain a specific pH within a calcium reactor, thereby controlling alkalinity and calcium output.
Dosing Pump Control: Can be used to activate or deactivate dosing pumps for buffering solutions if pH deviates too far.
Emergency Actions: In extreme pH scenarios, the Apex could be programmed to shut off specific equipment or trigger audible alarms.
Calibration and Maintenance:

Calibration is Crucial: All pH probes require regular calibration using NIST-traceable calibration fluids. For marine aquariums, you typically use a pH 7.0 calibration solution and a pH 10.0 calibration solution. Neptune Systems recommends calibrating pH probes every 60-90 days for optimal accuracy.
Temperature Compensation: pH readings are temperature-dependent. Ensure you have a temperature probe connected to the same module as your pH probe for accurate temperature compensation.

Storage: When not in use, pH probes should always be stored with their tip immersed in a storage solution (usually a specific pH probe storage solution or sometimes a pH 7.0 buffer). Allowing the probe to dry out will permanently damage it.
Cleaning: Periodically clean the probe tip to remove any biological film or salt creep that can interfere with readings. Gentle wiping or soaking in distilled water, a mild acid (like vinegar), or a specialized probe cleaning solution can help.
Lifespan: Even with the double junction design, pH probes are consumables. Their lifespan is typically 18 months to 3 years, depending on usage, water conditions, and maintenance. You'll know it's time to replace it when it can no longer calibrate accurately or its readings become erratic.
The Neptune Systems Double Junction pH Probe is an essential tool for any serious aquarist aiming for precise pH monitoring and automated control, crucial for the long-term health and stability of their aquatic environment.
