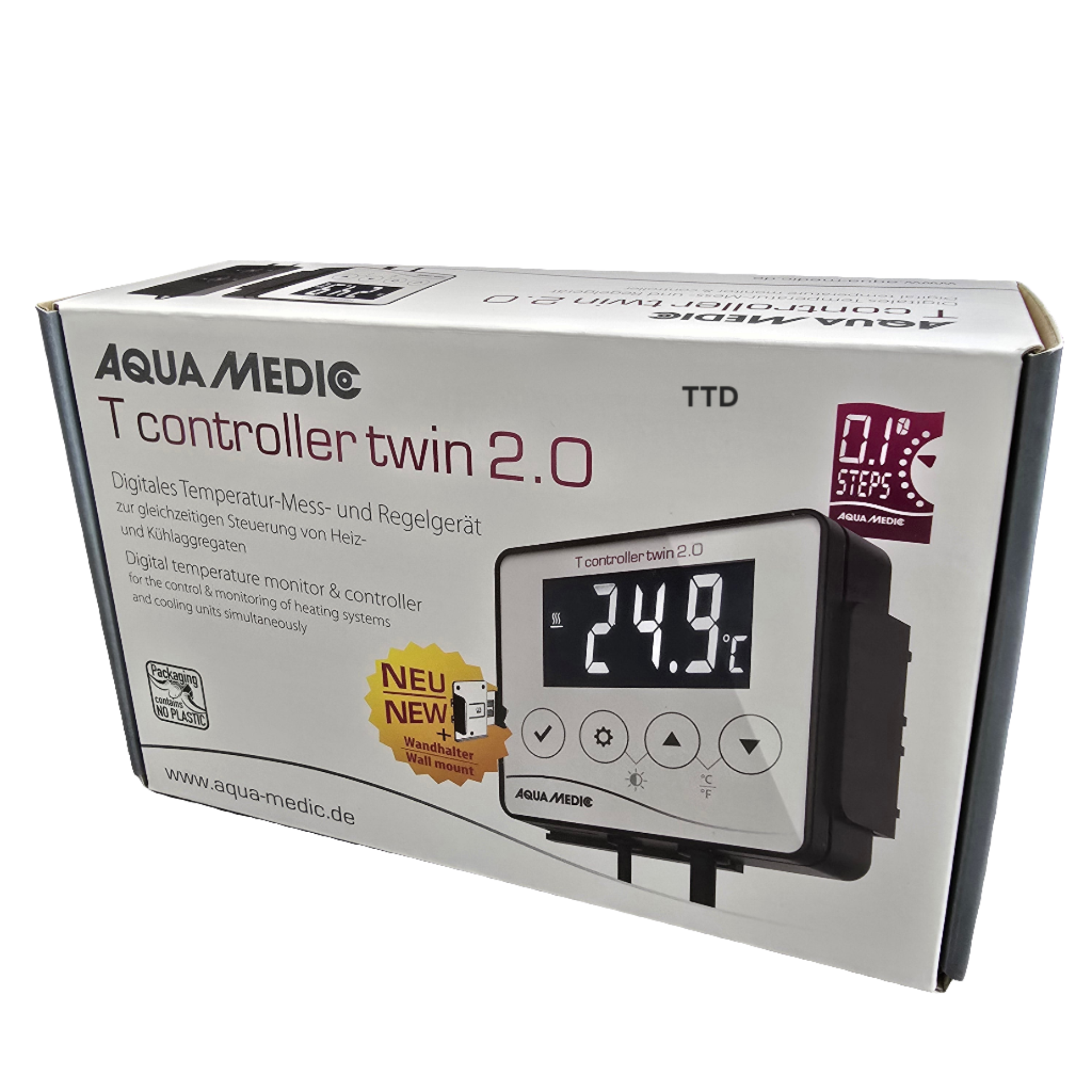

Aqua Medic T controller twin 2.0

This controller will automate the SCHEGO PTC-Heater Titanium Tube Heaters Click here

The temperature controller T controller twin 2.0 is used for controlling both heating systems and cooling units.

The measuring and switching accuracy is 0.1 °C. The control range varies from 16 - 40 °C, and the set value is in 0.1 °C increments.

The maximum load for heating systems is 1,200 watts and 460 watts for cooling units.

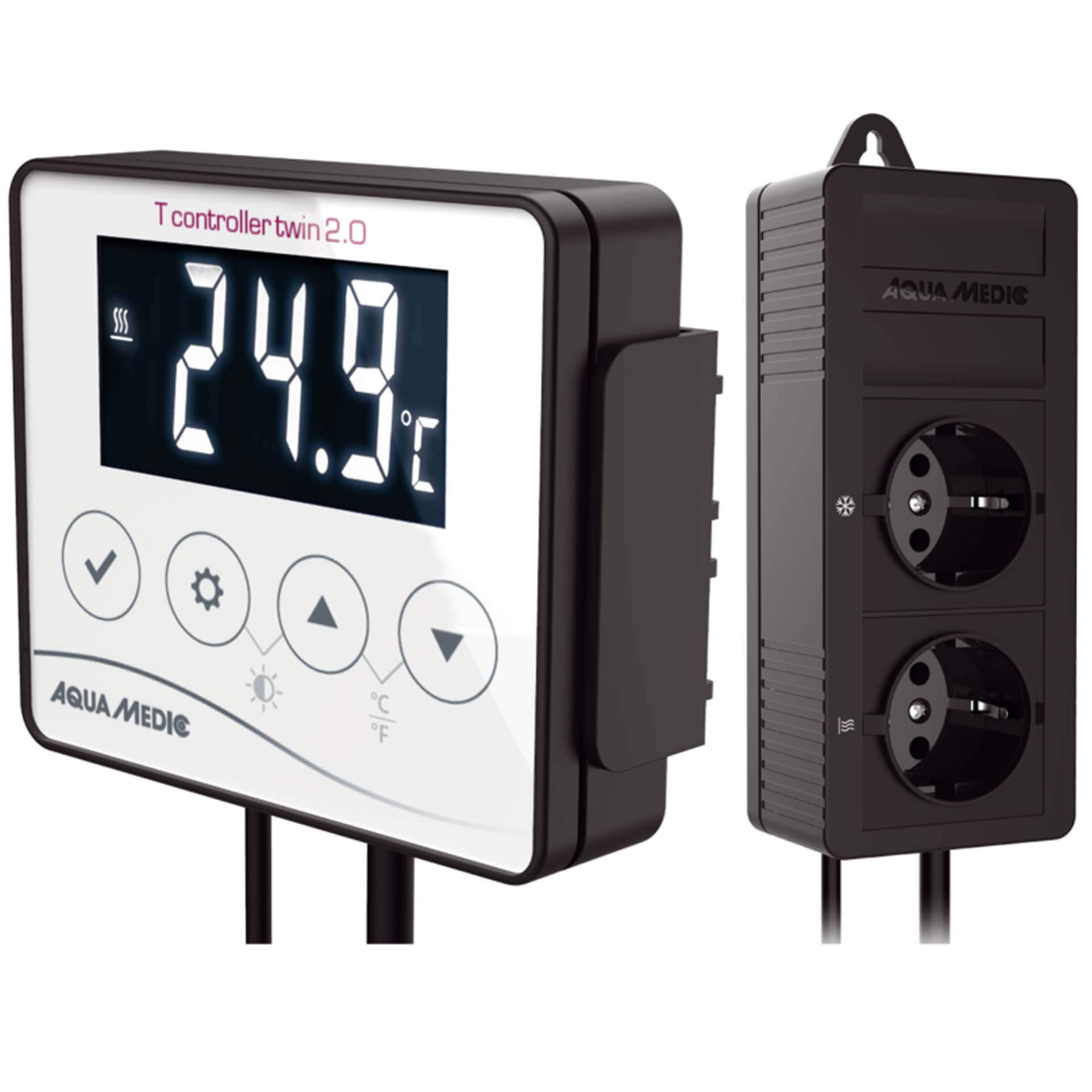

Because of the integrated double socket it is possible to connect a heating system and cooling unit simultaneously. The T controller twin 2.0 is supplied with a waterproof temperature probe.

The LCD display provides instant information on the current temperature. The minimum and maximum values can be easily adjusted. Sensor cable: 1,90 m
(IP 65)

• Item No: AM20525

• Barcode: 807846210385
• Weight: 1.1kg
• Warranty: 2 Years
• Display: 0.1 Degree Celsius
• Suitability: Marine and Freshwater

• Measurements Range: 0 up to 50 °C
• Resolution: 0.1 °C
• Loading Capacity of contact: 1,200 Watts at 220 V AC
• Adjustment Range: 16 – 40 °C
• Adjustment Accuracy: +/- 0.1 °C
• Power requirements: 220 - 240 V, 50 Hz
• Humidity: < 85%
• Cable length sensor: app. 2 m

For Manual click here
